Illustrate
AK digital mass flow meter / controller with display,and it can measure different kinds of gas,and it also can RS485 output!
Application
Mass Flow Meter and Mass Flow Controller are use to measure and control gas accurately. It’s widely used in fields of Semi-conductor / Vaccume / Solar energy / Analyze instrument / photoelectricity / Gas manufactory / Medicare / Power etc.
Features
Very low zero drift and temperature drift. It can measure over 60 types of gas. User can set medium parameters / customize flow range / customize low pressure difference / real-time curve output. User can select different color. User can collect data into EXCEL form. Controlling form: RS232 / RS485 / 0-5V / 4-20MA / different section control / different section combination / High-low level alarm.
Technical Data
| 1 | Flow range |
(0-5,10,20,30,50,100,200,300,500)SCCM (0-1,2,3,5,10,20,30,50,100)SLM |
| 2 | Accuracy | 1%FS |
| 3 | Linearity | 0.5%FS |
| 4 | Repeatability | 0.2%FS |
| 5 | Responding time | Less than 1s |
| 6 | Pressure difference | (0.0500.3)Mpa |
| 7 | Max.Pressure | 10MPa |
| 8 | Working temperature | 5-65℃ |
| 9 | Input/output |
Digital:RS232/RS485 Analog: 0-5vdc or 4-20mA |
| 10 | Power Supply | 7-16vdc,1A |
| 11 | Weight | 1.0kg |

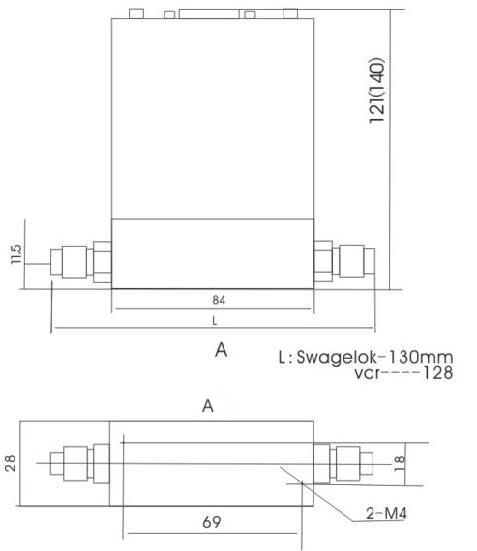

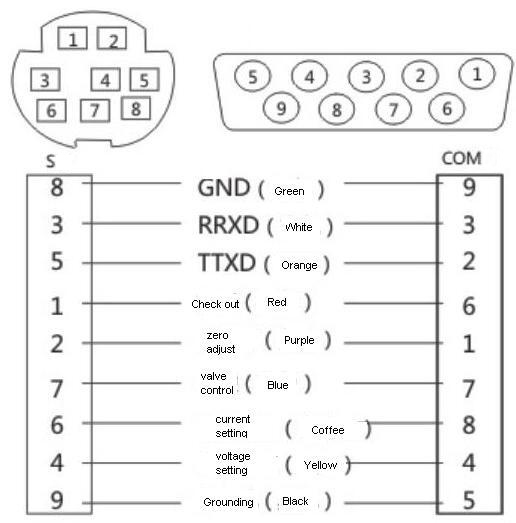

Outline figure and connection define
