Illustrate
AK insertion venturi meter can measure Oil, Chemical industry, metallurgy, electric power industry
Application
Oil, Chemical industry, metallurgy, electric power industry.
Suitable Range
1,Nominal

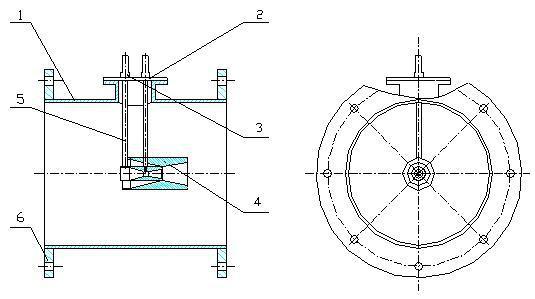

diameter/circular pipe:500mm≤DN≤4000mm

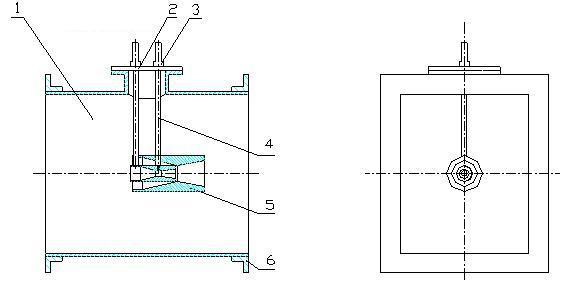

Rectangular duct:500mm×500mm≤DN≤4000mm×4000mm
2,Pressure:PN≤2.5MPa
3, Medium temperature:t≤600℃（if temperature >600 Celsius degree , it need to customize）
4,Stability:±10Pa
6,Accuracy:1class,1.5class,2class
Features
1, Small flow resistance ,pressure loss is small .
2,Big differential pressure and high accuracy .
3,Large measuring range .It can be designed according to user’s requirements .
4,Easy to installation . It can directly open a hole on the measuring pipe ,then insert and fix it .
5,Suitable for irregular shape of pipe .
6,Can install the purge device ,it can make sure the process clean-up .
