Illustrate
- Accuracy can up to 0.1%.
- ISO,CE,SGS standard for exporting.
- It can display current,total,temperature and density.
- 9 consecutive years as gold supplier for export
- More 80% meters for export
- Explosion-proof certificate and anti-vibration
Brief Introduction

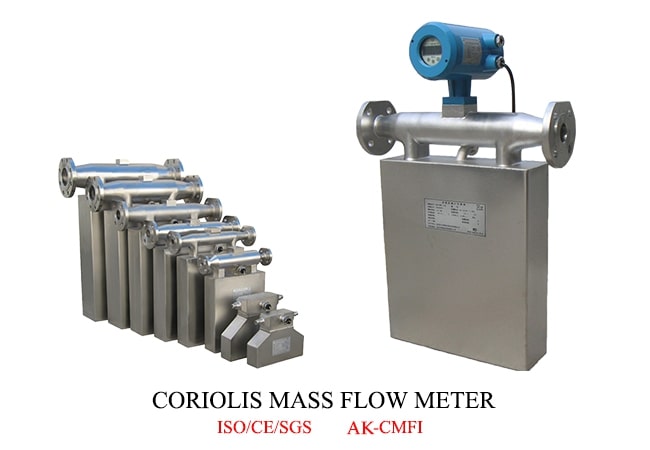

- Coriolis Mass Flow Meter are the leading meters for precision flow measurement.
- The meters offer the most accurate measurement available for virtually any process fluid, while exhibiting exceptionally low pressure drop.
- The meters offer direct mass flow, volume flow, density, and temperature measurement of liquids and slurries and without the need for additional equipment, manual calculations, or estimations.
- The meters are designed for unsurpassed performance in even the harshest operating environments
- They have no moving parts, and any special mounting or flow conditioning requirements.
- Every meter is available with stainless steel wetted parts and a wide variety of process connections to meet your every need.
Principles of Coriolis Mass Flow Meter
The structure of AK-CMFI Coriolis Mass Flow Meters was consisted of a pair of bended tubes. The principle is to detect Coriolis force forced a pair of tubes from inner mass flow by fluid.A new force—Coriolis force would be appear while two conditions met: (1) vibrating with normal frequency in a pair of bended tubes, (2) fluid flowing in tubes. This force was produced upon synthesis from vibrating force and flowing force by fluid in tubes. And tubes would be wresting symmetric the center line because the force forced. Two displacement sensors on sides of tubes detect the force and output electric signals. The signals regulated, mass flow directly produced
Advantages

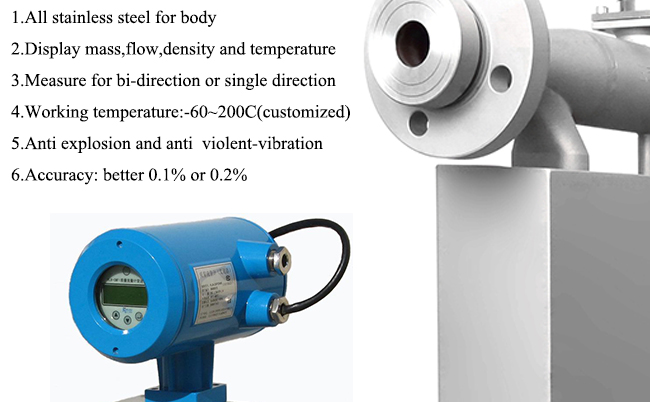

- Accuracy can up to 0.1%.
- ISO,CE,SGS standard for exporting.
- It can display current,total,temperature and density.
- 9 consecutive years as gold supplier for export
- More 80% meters for export.
- Explosion-proof certificate and anti-vibration.
Technical Specifications
|
Mass flow accuracy |
±[0.2% or 0.1&+(zero stability /flow rate×100%) |
|
Mass flow repeatability |
±(1/2) ×[0.2% +(zero stability /flow rate×100%) |
|
Density range |
0.2 g/cm3~3.5g/cm3 |
|
Density accuracy |
±0.002g/cm3 |
|
Temperature range |
-60C~+200C |
|
Temperature accuracy |
±1C |
|
Output of current loop |
4mA~20mA |
|
Output of frequency/pulse |
0Hz~10kHz |
|
Contactor capacity of a Batch Control relay |
24V/0.1A |
|
Explosion-proof |
Essential safety:Exib[ib]IIBT4 Composite:Exdib[ib]IIBT4 |
|
Contactor form |
normal open |
|
Environmental Specifications |
|
|
Temperature range of fluid |
-40C~+200C |
|
Environmental temperature range |
0C~+40C |
|
Environmental humidity |
≤90% RH, non condensation |
|
Atmospheric pressure range |
86kPa~106kPa |
|
Power supply of transmitters |
Essential safety Voltage: AC(220±10%)V,(50±5%)Hz Composite Voltage: DC (24±10%) V |
|
Specs |
Line Size |
Range |
Calibration Range |
Max. Pressure |
Zero Stability |
Velocity |
|
(mm) |
(t/h) |
(t/h) |
(MPa) |
(t/hr) |
(h m/t s) |
|
|
DN1 |
1 |
0~0.04 |
0.004~0.04 |
30.0 |
0.000008 |
353.7 |
|
DN3 |
3 |
0~0.35 |
0.035~0.35 |
30.0 |
0.000067 |
39.3 |
|
DN6 |
6 |
0~0.7 |
0.07~0.7 |
30.0 |
0.00016 |
19.65 |
|
DN10 |
10 |
0~1.2 |
0.12~1.2 |
30.0 |
0.0002 |
4.912 |
|
DN15 |
15 |
0~6.4 |
0.64~6.4 |
4.0 |
0.0011 |
2.183 |
|
DN25 |
25 |
0~16 |
1.6~16 |
4.0 |
0.002 |
0.902 |
|
DN40 |
40 |
0~40 |
4~40 |
4.0 |
0.003 |
0.334 |
|
DN50 |
50 |
0~65 |
6.5~65 |
4.0 |
0.006 |
0.197 |
|
DN80 |
80 |
0~160 |
16~160 |
2.5 |
0.01 |
0.0873 |
|
DN100 |
100 |
0~250 |
25~250 |
2.5 |
0.015 |
0.0544 |
|
DN150 |
150 |
0~550 |
55~550 |
2.5 |
0.03 |
0.0239 |
Explosion-proof of Identification Code
| Form of Explosion-proof | Identification Code |
| Essential safety | Exib[ib]IIBT4 |
| Composite | Exdib[ib]IIBT4 |
