Brief Introduction
- Repeatability better than 0.2%.accuracy:better than 1%.
- Easy to install outside the pipe
- Two line display: Instantaneous flow rate,Accumulate flow,status
- Built-in printer,to print in time and regularly
- Standard interface RS485 for data output and on-line operation
- Self-diagnose to show the current status.
- Built-in Nickel-hydrogen cell supports 20 hours of operation
- It also can measure heat by heat module
Main Features
- It is widely used to measure liquid flow in various indus such as high accuracy, good repea tability tries thanks to its advantages
- long-running cell,easy operation,built-in printer etc. The flowmeter is very industry like petrochemi cal, water, power, energy monitoring ect.

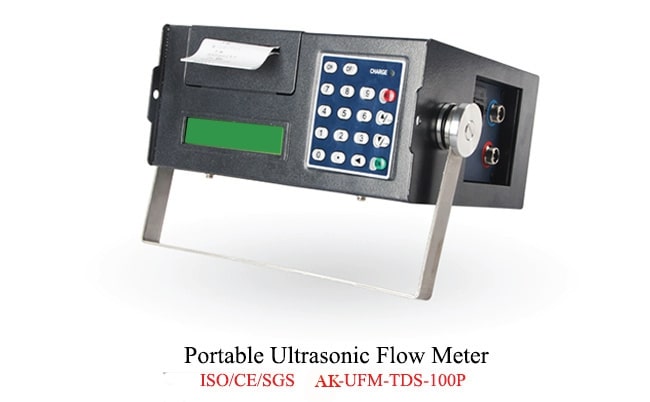

This is the mainly component for handheld ultrasonic flow meter
- Host: English display and large backlight LCD,NI-MH battery.
- Sensor:standard clamp type and other for custmoized
- Steel support chain for fixing.
- Sensor cables
- Work box:aluminium alloy material
- Battery charger.
- Flexible rule: standard 5 meters
- Coupling agent: fill the gap between sensor and pipe for accuracy
- Attached: QC certificate, service card, user manual and packing list.

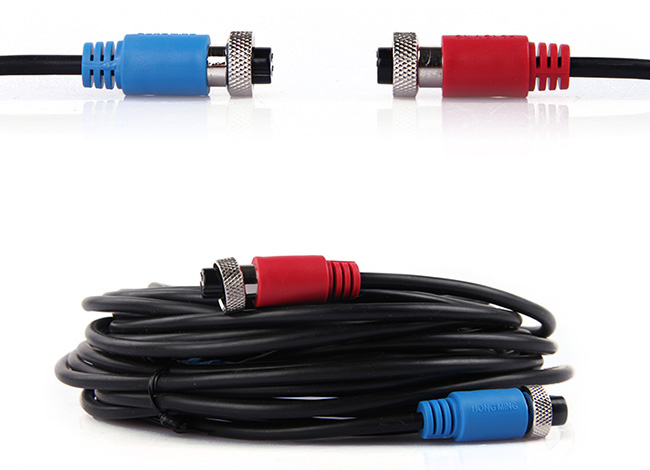

This is cable to connect transmitter with sensor for Portable ultrasonic flow meter

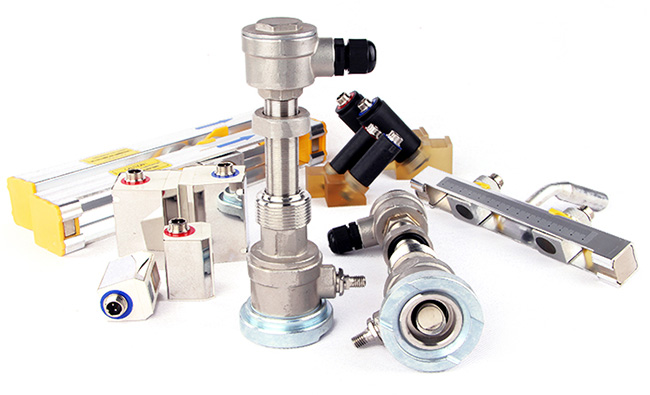

This is various sensors and support for portable ultrasonic flow meter
|
Data |
S1Z |
M1Z |
S1 |
M1 |
L1 |
S1H |
M1H |
|
Pipe size |
15-100 |
50-700 |
15-100 |
50-700 |
300-6000 |
15-100 |
50-700 |
|
Material |
Aluminum Alloy |
ABS |
Special material for hi-temp |
||||
|
Frequency |
1MHz |
||||||
|
Installation |
V(N,W)flange |
V,Zflange |
V(N,W)flange |
V,Zflange |
Zflange |
V(N,W)Flange |
V,Z flange |
|
Calibration |
Calibrated together with flowmeter |
||||||
|
Magnetic |
yes |
no |
|||||
|
Temperature |
0°C-70°C |
0°C-160°C |
|||||
|
IP |
IP65 |
||||||
|
Outsize |
200×25×25 |
280×40×40 |
45×30×30 |
60×45×45 |
80×70×55 |
90×85×24 |
90×82×29 |
|
WT(g/pair) |
250 |
1080 |
75 |
250 |
650 |
94 |
150 |
|
Medium |
Water,sea water,sewage,Alcohol,oil etc |
||||||
|
Turbidity |
≤10000ppm with little air bubble |
||||||
|
Pipe |
Carbon steel stainless steel,cast iron,Brass,PVC,Aluminum etc. |
||||||
|
Pipe inner |
Rubber,Slurry,PP,PS,bakelite, PTFE |
||||||
|
Signal cable |
standard:5M×2,optinal:10M×2 or 15M×2... |
||||||
Below is installation sample of portable ultrasonic flow meter for your reference.
