Illustrate

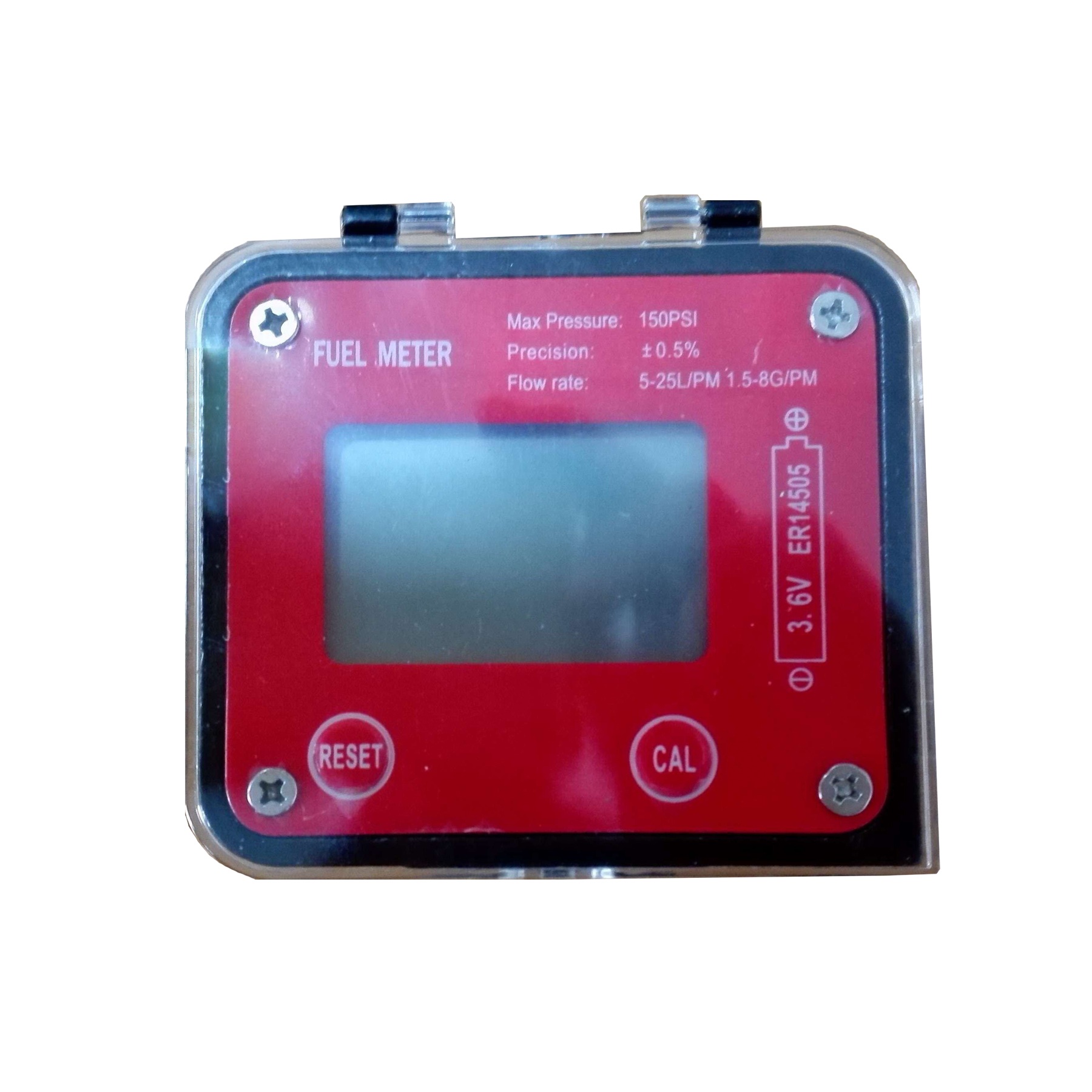

AK YM Oval Gear Flow Meter can be used to measure liquid
Brief Introduction
1.For controlling and measuring various different viscosity, such as fuel, lubrication oil
2.High precision and low pressure loss, compact light weight design and easy installation
Main Features
1.LCD display
2. Five-digital sub-total, with floating point from 0.001 to 999.99 8-digital non-resettable totalizer
3. With pulse output, Reed Switch built in, signal channel output.
4. Display four units: liter/L, Gallon/GAL, Quart/Qts, Pint/Pts
Technical Parameters
| Inlet& outlet | BSPF1/2" |
| Accuracy | ±0.5% |
| Repeatability | 0.2% |
| Max Working Pressure | 70Bar |
| Flow Rate | 1～30L/min |
| Discharge Rate per Revolution | 25ml/R |
| Battery Power | 2×1.5V |
