AK Handable Ultrasonic Flowmeter can be used to measure liquid
Brief Introduction
1.Widely used to measure liquid flow in various industries
2.Smart body, high accuracy, good repeatability,long-running cell,easy operation,built-in printer etc.
3.Very popular in industry like petrochemical, water, power, energy monitoring etc. It’s
4.Exported to Japan, Korea, Australia, America etc.
Main Features
1.Accuracy：±1%
2.Repeatability：±0.2%
3.Easy to install outside the pipe
4.Four line display: Instantaneous flow rate,Accumulate flow,status
5.Standard interface RS232 for data output and on-line operation
6.Self-diagnose to show the current status
7.Built-in Nickel-hydrogen cell supports 10 hours of operation
Main Components

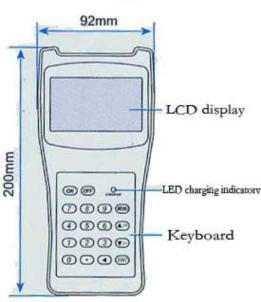

Outline Size

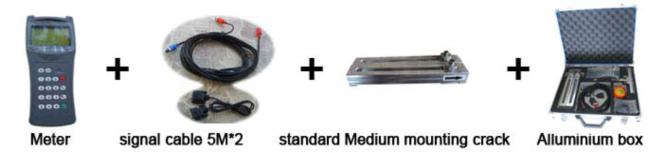

Standard Configuration

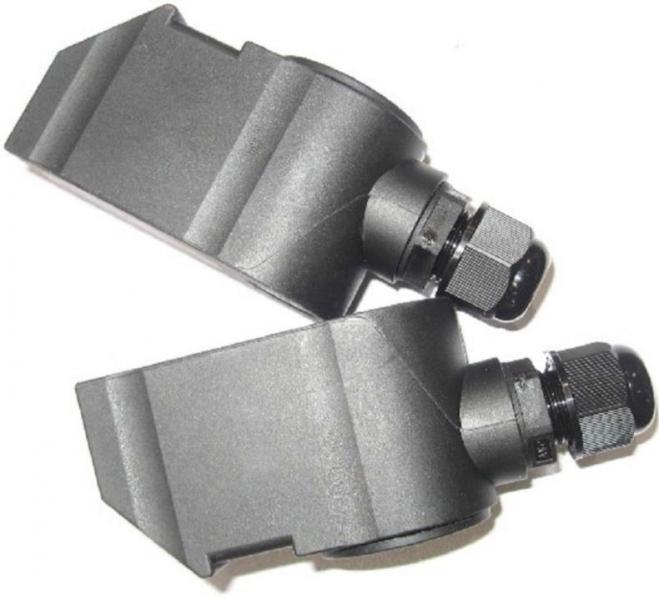

Sensors Optional
Technical Parameters
| Sensor | S1Z | M1Z | S1 | M1 | L1 | S1H | M1H |
| Pipe size(DN) | 15-100 | 50-700 | 15-100 | 50-700 | 300-6000 | 15-100 | 50-700 |
| Material | Material | ABS | Special material for H -temp | ||||
| Frequency | 1MHz | ||||||
| Installation | V（N/ W） | V/ Z | V（N/ W） | V/ Z | Z | V/（N W） | V/ Z |
| Calibration | Calibrated together with flowmeter | ||||||
| Magnetic | yes | no | |||||
| Temperature | 0-70 | 0-160 | |||||
| IP | IP65 | ||||||
| Outline size | 200*25*25 | 200*40*40 | 45*30*30 | 60*45*45 | 80*70*55 | 90*85*24 | 90*82*29 |
| N.W. g/2pcs | 250 | 1080 | 75 | 250 | 650 | 94 | 150 |
| Medium | Water sea water sewage Alcohol oil etc | ||||||
| Turbidity≤ | 10000ppm with little air bubble | ||||||
| Pipe | Carbon steel stainless steel cast iron Brass PVC Aluminum etc. | ||||||
| Pipe liner | Rubber Slurry PP PS bakelite, PTFE | ||||||
| Signal cable | standard 5M *2 optional:10M* 2 or 15M* 2 | ||||||
