Illustrate

AK Double Rotator Flow Meter can be used to measure liquid

Brief Introduction

1.Unique design, precision processing and accurately assembled displacement flowmeter.
2.Playing a role for segmentation, measurement, carry, drainage the tested liquid
3.Increase the structure of the positioning gear and the two rotor in rotation at each other to achieve mutual contacts.
4.Working smoothly, low noise, wear less, accuracy and high viscosity adaptable, able to measure the tiny particles in the liquid , thus difficult to card meters.
5.After the flowmeter chemical nickel processing, with anti-corrosion, anti-wear characteristics,
6.Working with very high performance and keep long time accuracy and stability.

Main Features

1. Max. flow is 2 times larger than normal flowmeter.
2. Long life, high accuracy and reliability.
3. Minimal pressure loss.
4.1000 meters of cable for long distance output. pulse output N=0.1L(a pulse for 1N), for direct connection with computer networking.
5.An explosion of the Ia II CT6(intrinsic safety type); flameproof d II BT6(flameproof); protection IP56.

Working principle

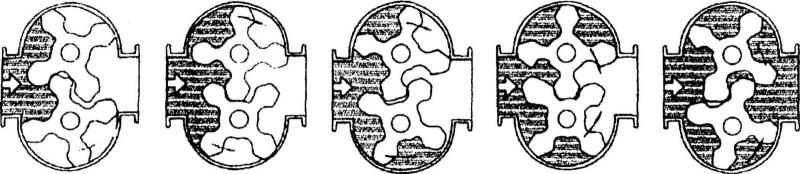

As shown below, the flowmeter through a special helical rotor rotary, direct measurement of liquid flow volume.
Flowmeter on the flow of fluids in the body cavity to complete the measurement. Rotor in a spiral of liquid under the
pressure of rotation, rotor and measurement within cavity formation of the closed space(shadow) rotating once
every eight times from the shadow of the volume. So the basis of the relationship, as long as the measures the
number of rotor rotary, you can calculate the cumulative traffic volume, according to the number per second,
you can measure the instantaneous flow.

Technical data
DN and flow range

DN mm	Flow range(m3/h)
	≤0.3 mpa.s	0.3~2 mpa.s		2~5 mpa.s	5~15 mpa.s	15~50 mpa.s	50~400 mpa.s	400~1000 mpa.s	1000~1500 mpa.s	1500~2000 mpa.s
	LPG	Gasaline	Coal oil	Light deisel	A heavy oil	B heavy oil	C heavy oil	High viscosity liquid
8	0.04~0.4	0.04~0.4	0.04~0.4	0.04~0.4	0.03~0.3	0.03~0.3	0.03~0.3	0.03~0.3
15	0.25~2.5	0.25~2.5	0.25~2.5	0.03~0.3	0.03~0.3	0.03~0.3	0.03~0.3	0.25~2.5
25	0.6~0.6	0.6~0.6	0.6~0.6	0.6~0.6	0.6~0.6	0.6~0.6	0.6~0.6	0.5~5	0.5~4	0.5~3
40	5~20	4.5~20	4~20	3~20	2.5~20	2.5~20	2.5~20	2~13	2~12	2~10
50	6~30	5~30	5~30	4~30	4~30	4~30	3~30	2.5~25	2.5~20	2.5~15
80	30~80	20~80	15~80	12~80	10~80	8~80	6~80	5~55	5~45	5~39
100	50~180	35~180	25~180	20~250	17~150	10~250	8.5~250	8.5~130	8.5~110	8.5~97
150	70~260	50~260	40~260	30~260	20~340	17~340	15~340	12~190	12~160	12~140
200	100~380	70~380	55~380	45~500	35~500	30~500	25~500	25~280	25~220	25~200
250	200~630	140~630	110~630	90~800	70~800	55~800	45~800	45~460	45~380	45~340
300	300~980	210~980	170~980	140~1100	110~1100	90~1100	65~1100	65~720	65~590	65~520
Note: 1. it’s the flow range based on 0.5% accuracy 2.For 0.2 accuracy, the min. flow.rate is 1/5 of man. Flowrate. For 0.1% accuracy, the min. flow rate is 1/3 of max. flow rate.

Exterior

Double-rotator transmitter and the overall structure of flowmeter
1.panel
2.Battery
3.Second instrument
4.Connection part
5.U-type cover
6.pulse generator
7.Positioning gear
8.Upper cover
9. O ring
10.Axis
11.Rotator
12. Main body
13.upper cover
14.Thrust bearing
15. Adjustment screw
16.bottom plate
17.output case

Model	1	2	3	4	5	6	Explanation
	DN	Counter	Pressure	Character	Output generator	Temperature Working
UE							Double-rotor flowmeter
8 15 25 40 50 80 100 150 200 250 300							DN 8mm
							DN 15mm
							DN 25mm
							DN 40mm
							DN 50mm
							DN 80mm
							DN 100mm
							DN 150mm
							DN 200mm
							DN 250mm
							DN 300mm
W J E H							Pulse output, no display
							Mechanical counter
							Electronic counter
							Re-set mechanical counter
1.6 2.5 4.0 6.3							PN 1.6 Mpa
							PN 2.5 Mpa
							PN 4.0 Mpa
							PN 6.3 Mpa
C304 C316 CC304 CC316							Rotator 304SS
							Rotator 316SS
							Body and rotator 304SS
							Body, rotator 316SS
F I							Pulse output
							Current output
A B C D							Working temperature -20℃~+80℃
							Working temperature -20℃~+150℃
							Working temperature -20℃~+250℃
							Working temperature -20℃~+350℃
