Illustrate
TDS-100M modular ultrasonic flow meter can work alone without a LCD and keypad module, the module can be used alone as a flow meter.
Main Features
1.It can work alone without a LCD and keypad module
2.no pressure drop, no moving parts, no leaks and no contamination
3.Integrate the modules into a multi-channel flow meter then can measures several dozen of different pipes
4.Higher accuracy by measures the same pipe with all the channels
5.Easy to install it and don’t need special skills or tools
Technical Parameters
| Display: | 2x10 LCD indicator to display flow rate, flow speed, total flow |
| Operation | To set with 4 touch keys |
| Accuracy | Better than 1% accuracy and 0.2% of repeatability |
| Application | Positive/negative/net flow or heat totaliser |
| Protocol | MODBUS/MBUS protocol |
| Input | 4~20mA/PT100 platinum resistance input |
| Output | OCT(Pulse width 6~1000ms, default: 200ms) RS-485/4~20mA output/relay |
| Power | 24VDC for module,85~264VAC/24VDC for display terminal |
| Protection | IP57 |
| Software | can be upgrated with code-documents sent by email |
| Memory | 512 days/120month/10years forward-flow / return-flow / Net-flow |

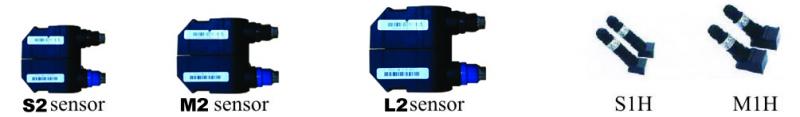

Sensors
| Sensor | S1type | M1type | L1 type | S1H | M1H |
| Pipe size(DN) | 15-100 | 50-700 | 300-6000 | 15-100 | 50-700 |
| Material | ABS | Special material for H -temp | |||
| Frequency | 1MHz | ||||
| Installation | V（N/ W） | V/ Z | Z | V/（N W） | V/ Z |
| calibration | Calibrated together with flowmeter | ||||
| magnetism | Magnetic | No magnetic | |||
| Temperature | 32℉～158℉（0-70℃） | 32℉～320℉（0-160℃） | |||
| Protection class | IP65 | ||||
| Dimension(mm) | 45*30*30 | 60*45*45 | 80*70*55 | 90*85*24 | 90*82*29 |
| Weight(g) | 75 | 250 | 650 | 94 | 150 |
| Liquid types | Water. Sea water waste water. Chemical liquids. oil, crude oil. alcohol. beer. etc | ||||
| Suspension concentration | ≤20000ppm.may contain very small amount of air bubbles | ||||
| Pipe material | All metals’ most plastics, fiber glass etc | ||||
| Transducer cable | Standard length 5 meter×2.can be extended to 10 meter×2 or 15meter×2 | ||||
