Brief Introduction
- transducers include clamp-on type,insertion type,in-line type.
- These series products have gained the best sales volume in our company,and are the favorable products in future.
- applied to measure on-line differents liquids in industry spot
- DN15~DN6000 wall mounted ultrasonic flow meter
- ISO,CE,SGS certificates for export
- More 80% meters for export
- 9 consecutive years as gold supplier for export
Main Features
- Repeatability better than 0.2%.accuracy:better than 1%.
- Operating power: AC 85—264V or isolation DC 8-36VDC
- Transducer: clamp-on type,insertion type,in-line type
- Protection:mainframe:IP65, transducer:IP:68
- signal output: one channel standard isolation RS485 output
- One channel isolation 4-20mA or 0-20mA active output
- One channel OCT output(programmed between the pulse width(6-1000ms),default before leaving factory (200ms)
- One channel isolation relay output,with positive ,negative,net accumulation pulses and different alarm signals.
- Input:two channel three wire system PT100 platinum resistor input loop,to make heat meter has the function of displaying heat quantity. Three channel 4-20mA input optional,accuracy:0.1%,has the ability to 11.input the signals of pressure, liquid level, temperature and so on.

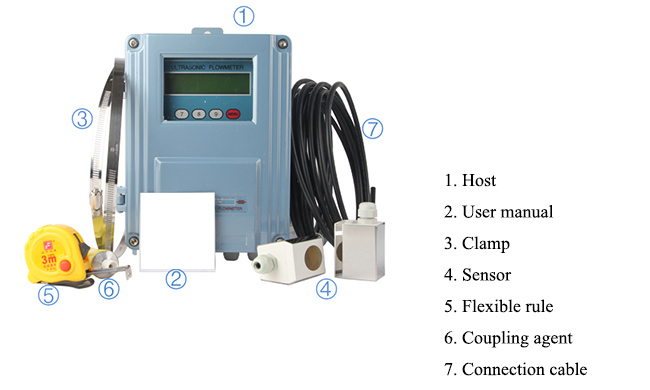

This is the mainly component for handheld ultrasonic flow meter

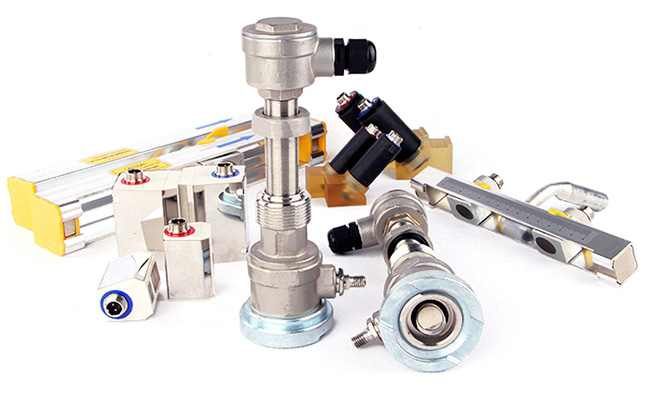

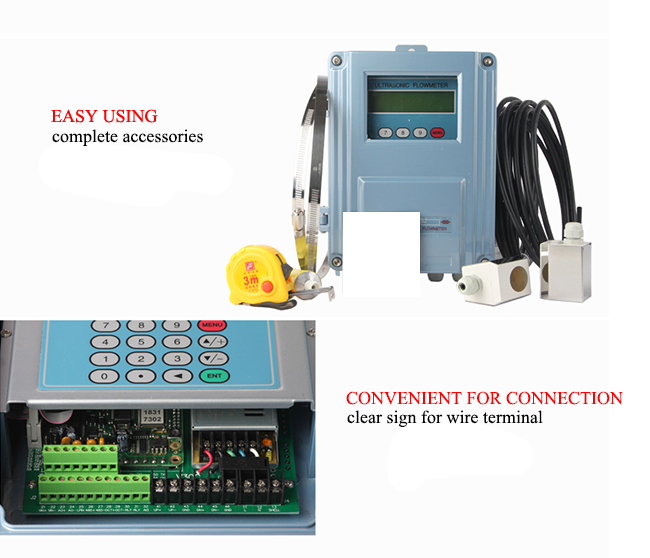

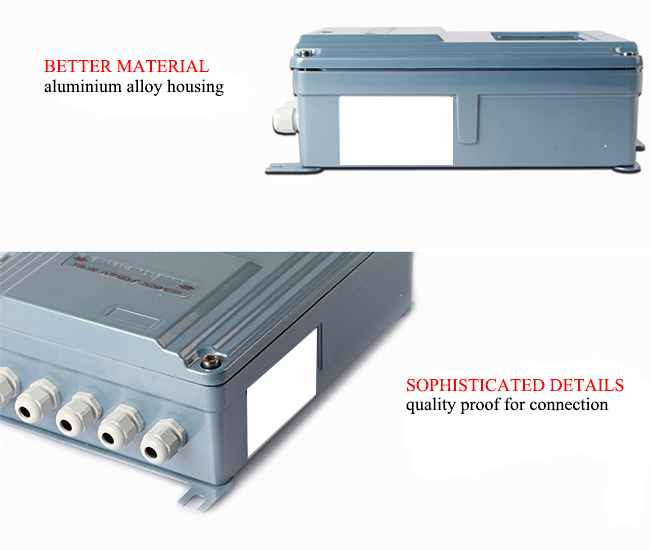

This is various sensors and support for wall mounted ultrasonic flow meter
|
Data |
S1Z |
M1Z |
S1 |
M1 |
L1 |
S1H |
M1H |
|
Pipe size |
15-100 |
50-700 |
15-100 |
50-700 |
300-6000 |
15-100 |
50-700 |
|
Material |
Aluminum Alloy |
ABS |
Special material for hi-temp |
||||
|
Frequency |
1MHz |
||||||
|
Installation |
V(N,W)flange |
V,Zflange |
V(N,W)flange |
V,Zflange |
Zflange |
V(N,W)Flange |
V,Z flange |
|
Calibration |
Calibrated together with flowmeter |
||||||
|
Magnetic |
yes |
no |
|||||
|
Temperature |
0°C-70°C |
0°C-160°C |
|||||
|
IP |
IP65 |
||||||
|
Outsize |
200×25×25 |
280×40×40 |
45×30×30 |
60×45×45 |
80×70×55 |
90×85×24 |
90×82×29 |
|
WT(g/pair) |
250 |
1080 |
75 |
250 |
650 |
94 |
150 |
|
Medium |
Water,sea water,sewage,Alcohol,oil etc |
||||||
|
Turbidity |
≤10000ppm with little air bubble |
||||||
|
Pipe |
Carbon steel stainless steel,cast iron,Brass,PVC,Aluminum etc. |
||||||
|
Pipe inner |
Rubber,Slurry,PP,PS,bakelite, PTFE |
||||||
|
Signal cable |
standard:5M×2,optinal:10M×2 or 15M×2... |
||||||
