AK-OGFM-DTO Oval Gear Flow meter can be used to measure liquid
Brief Introduction
1. Oval gear flow meter and max temperature is 200C
2. ISO,CE,SGS certificates for export
3. More 80% meters for export
4. 9 consecutive years as gold supplier for export
Main Features
1. Electical impluses signal transmitter
2. Permanent magnet disk on the counter
3. No spark, fearless oil, grease and dust, small measurement and convenient installation
4. The solid testing signals can be got without contact
5. Long life, strong capacity of anti interference, and wide working frequency
below is mainly parameters for oval gear flow meter
|
Basic errors allowance |
±0.5 (±0.2) |
|
Connecting flange of pipe |
GB2555-81 |
|
Max.working pressure |
1.6Mpa |
|
Viscosity of liquid |
0.6MPa.s-250MPa.s (up to 2000MPa.) |
|
Medium Temperature |
-30C-160C |
|
Model |
Connection |
Flow rate(L/H) |
||
|
0.6~2map.s |
2~8map.s |
8~200map.s |
||
|
DT-O-10 |
1/2"~3/8" |
40~400 |
40~400 |
40~400 |
|
DT-O-15 |
Flange 4*Φ14 |
380~1500 |
200~1500 |
150~1500 |
|
DT-O-20 |
Flange 4*Φ14 |
750~3000 |
400~3000 |
300~3000 |
|
DT-O-25 |
Flange 4*Φ14 |
1500~6000 |
800~6000 |
600~6000 |
|
DT-O-40 |
Flange 4*Φ18 |
3000~15000 |
2000~15000 |
1500~15000 |
|
DT-O-50 |
Flange 4*Φ18 |
4800~24000 |
3200~24000 |
2400~24000 |
|
DT-O-80 |
Flange 4*Φ18 |
12000~60000 |
8000~60000 |
6000~60000 |
|
DT-O-100 |
Flange 4*Φ18 |
20000~100000 |
13000~100000 |
10000~100000 |
|
DT-O-150 |
Flange 4*Φ18 |
24000~120000 |
15000~120000 |
12000~120000 |

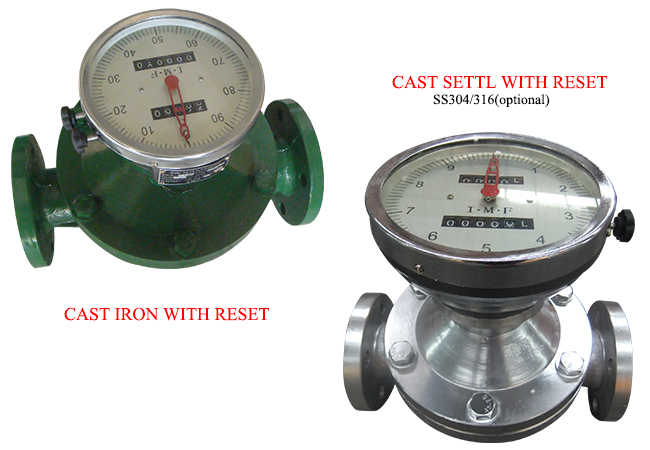

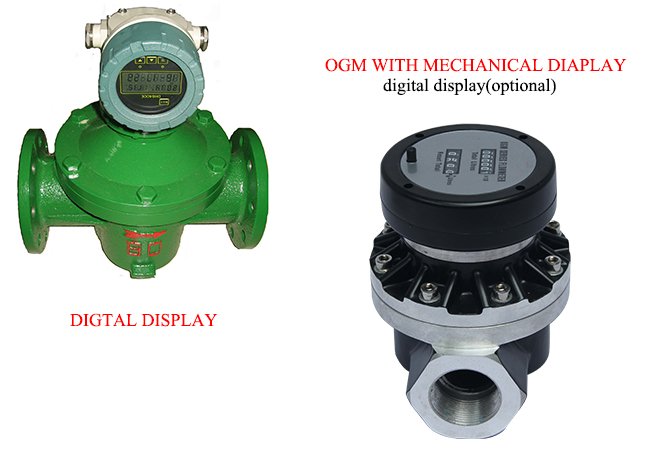

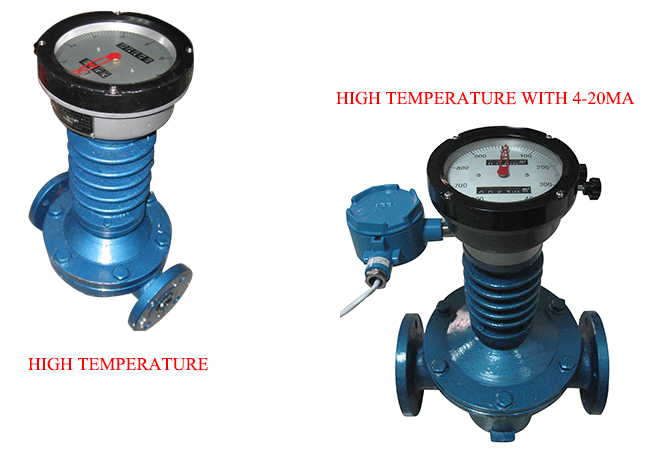

this photos is for various for oval gear flow meter

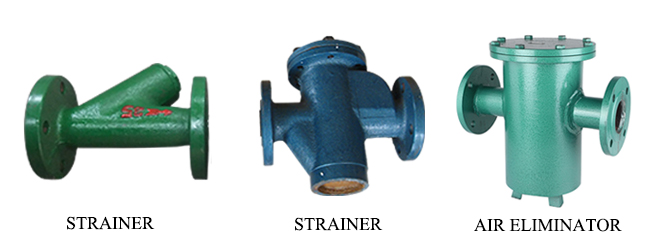

this is strainer of oval gear flow meter
this is for brief production line of oval gear flow meter .

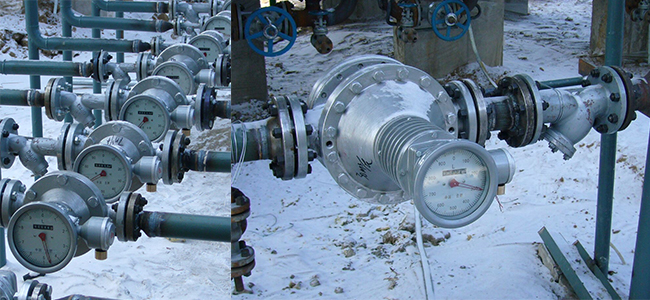

This is installation sample of oval gear flow meter for your reference.
