AK Portable Type Ultrasonic Flowmeter widely used in different industries,like like petrochemical, water, power, energy monitoring ect.
Main Features
1.Easy to install outside the pipe
2.High accuracy ±1%, good repeatability:±0.2%
3.Long-running cell、easy operation，built-in printer etc
4.two lines display: Instantaneous flow rate,Accumulate flow,status
5.Built-in printer，to print in time and regularly
6.Standard interface RS485 for data output and on-line operation
7.Self-diagnose to show the current status
8.Built-in Nickel-hydrogen cell supports 20 hours of operation
Technical Parameters
|
Sensor |
S1 |
M1 |
L1 |
S1H |
M1H |
|
Pipe size(DN) |
15-100 |
50-700 |
300-6000 |
15-100 |
50-700 |
|
Material |
ABS |
Special material for H -temp |
|
Frequency |
1MHz |
|
Installation |
V（N/ W） |
V/ Z |
Z |
V/（N W） |
V/ Z |
|
calibration |
Calibrated together with flowmeter |
|
magnetism |
Magnetic |
No magnetic |
|
Temperature |
32℉～158℉（0-70℃） |
32℉～320℉（0-160℃） |
|
Protection class |
IP65 |
|
Dimension(mm) |
45*30*30 |
60*45*45 |
80*70*55 |
90*85*24 |
90*82*29 |
|
Weight(g) |
75 |
250 |
650 |
94 |
150 |
|
Liquid types |
Water. Sea water waste water. Chemical liquids. oil, crude oil. alcohol. beer. etc |
|
Suspension concentration |
≤10000 ppm with little air bubble |
|
Pipe |
Carbon steel stainless steel cast iron Brass PVC Aluminum etc. |
|
Pipe liner |
Rubber Slurry PP PS bakelite,PTFE |
|
Signal cable |
Standard：5M* 2 optional:10M* 2 or 15M *2 |

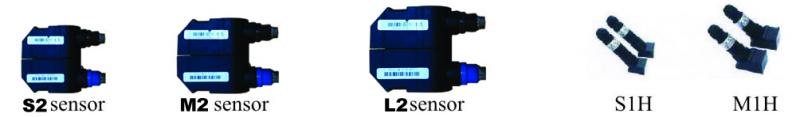

Sensors
|
Sensor |
S2 |
M2 |
L2 |
S1H |
M1H |
|
Pipe size(DN) |
15-100 |
50-700 |
300-6000 |
15-100 |
50-700 |
|
Material |
ABS |
Special material for H -temp |
|
Frequency |
1MHz |
|
Installation |
V（N/ W） |
V/ Z |
Z |
V/（N W） |
V/ Z |
|
calibration |
Calibrated together with flowmeter |
|
magnetism |
Magnetic |
No magnetic |
|
Temperature |
32℉～158℉（0-70） |
32℉～320℉（0-160） |
|
Protection class |
IP65 |
|
Dimension(mm) |
45*30*30 |
60*45*45 |
80*70*55 |
90*85*24 |
90*82*29 |
|
Weight(g) |
75 |
250 |
650 |
94 |
150 |
|
Liquid types |
Water. Sea water waste water. chemicalliquids. oil, crude oil. alcohol. beer. etc |
|
Suspension concentration |
≤10000 ppm with little air bubble |
|
Pipe |
Carbon steel stainless steel cast iron Brass PVC Aluminum etc. |
|
Pipe liner |
Rubber Slurry PP PS bakelite,PTFE |
|
Signal cable |
Standard：5M* 2 optinal:10M* 2 or 15M *2 |
|
|
|
|
|
|
