1) DN15~DN6000 handheld ultrasonic flow meter 2) ISO,CE,SGS certificates for export 3) More 80% meters for export 4) 9 consecutive years as gold supplier for export
Brief Introduction
- DN15~DN6000 wall mounted ultrasonic flow meter
- ISO,CE,SGS certificates for export
- More 80% meters for export
- 9 consecutive years as gold supplier for export
- It's widely used to measure liquid flow in various industries
- Many advantages such as smart body, high accuracy, good repeatability,long-running cell,easy operation,built-in printer etc.
- The flowmeter is very popular in industry like petrochemical, water, power, energy monitoring etc.
Main Features
- Repeatability better than 0.2%.accuracy:better than 1%.
- Easy to install outside the pipe
- line display: Instantaneous flow rate,Accumulate flow,status
- Standard interface RS232 for data output and on-line operation
- Self-diagnose to show the current status
- Built-in Nickel-hydrogen cell supports 13 hours of operation

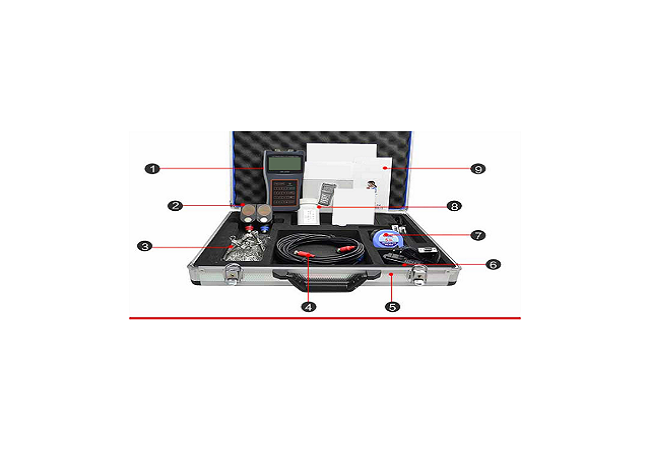

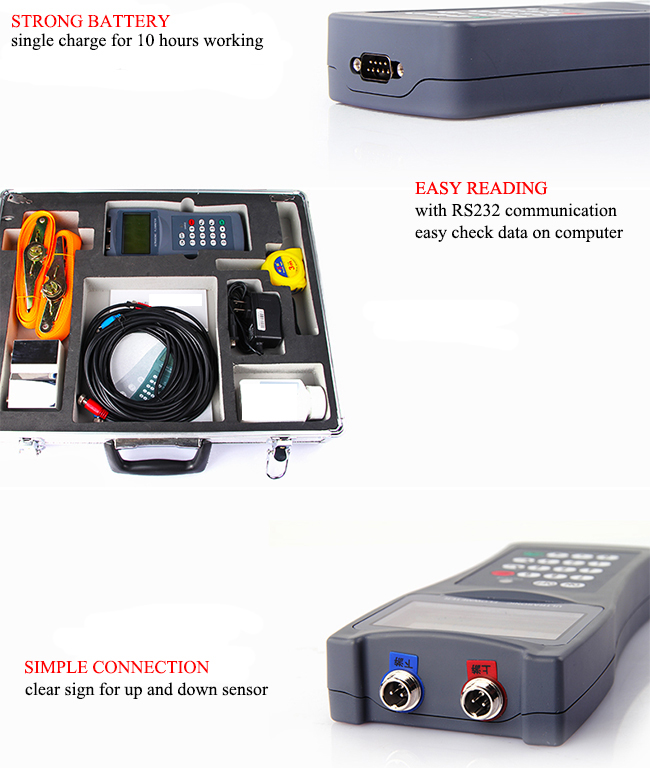

This is the mainly component for handheld ultrasonic flow meter

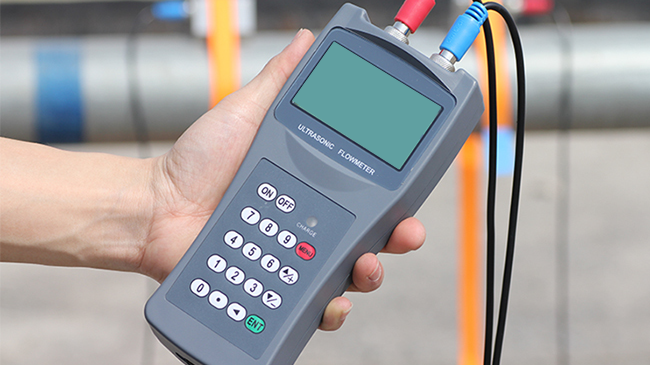

- Host: English display and large backlight LCD,NI-MH battery.
- Sensor:standard clamp type and other for custmoized
- Steel support chain for fixing.

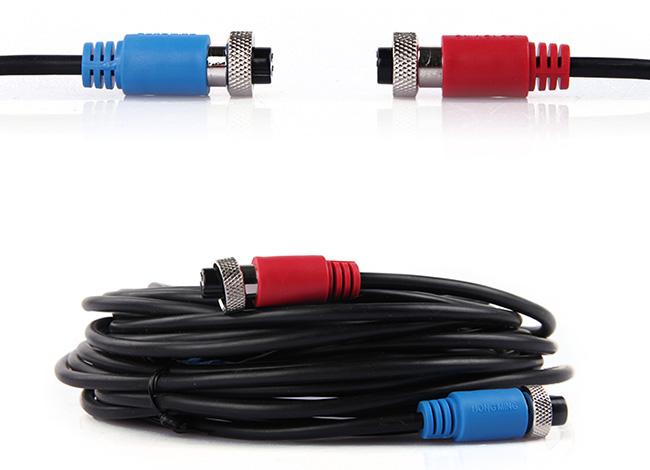

- Sensor cables
- Work box:aluminium alloy material
- Battery charger.
- Flexible rule: standard 5 meters
- Coupling agent: fill the gap between sensor and pipe for accuracy
- Attached: QC certificate, service card, user manual and packing list.

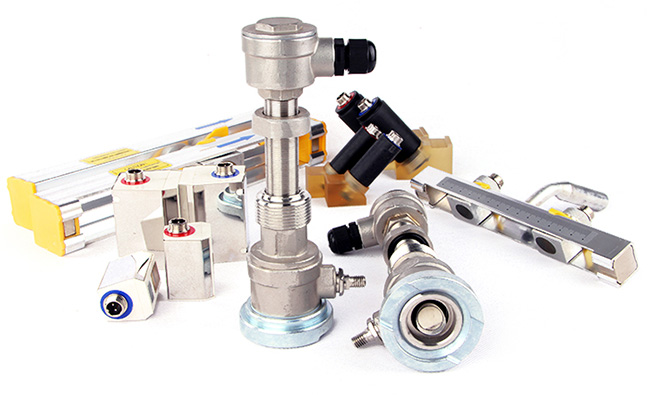

This is various sensors and support for wall mounted ultrasonic flow meter
|
Data |
S1Z |
M1Z |
S1 |
M1 |
L1 |
S1H |
M1H |
|
Pipe size |
15-100 |
50-700 |
15-100 |
50-700 |
300-6000 |
15-100 |
50-700 |
|
Material |
Aluminum Alloy |
ABS |
Special material for hi-temp |
||||
|
Frequency |
1MHz |
||||||
|
Installation |
V(N,W)flange |
V,Zflange |
V(N,W)flange |
V,Zflange |
Zflange |
V(N,W)Flange |
V,Z flange |
|
Calibration |
Calibrated together with flowmeter |
||||||
|
Magnetic |
yes |
no |
|||||
|
Temperature |
0°C-70°C |
0°C-160°C |
|||||
|
IP |
IP65 |
||||||
|
Outsize |
200×25×25 |
280×40×40 |
45×30×30 |
60×45×45 |
80×70×55 |
90×85×24 |
90×82×29 |
|
WT(g/pair) |
250 |
1080 |
75 |
250 |
650 |
94 |
150 |
|
Medium |
Water,sea water,sewage,Alcohol,oil etc |
||||||
|
Turbidity |
≤10000ppm with little air bubble |
||||||
|
Pipe |
Carbon steel stainless steel,cast iron,Brass,PVC,Aluminum etc. |
||||||
|
Pipe inner |
Rubber,Slurry,PP,PS,bakelite, PTFE |
||||||
|
Signal cable |
standard:5M×2,optinal:10M×2 or 15M×2... |
||||||

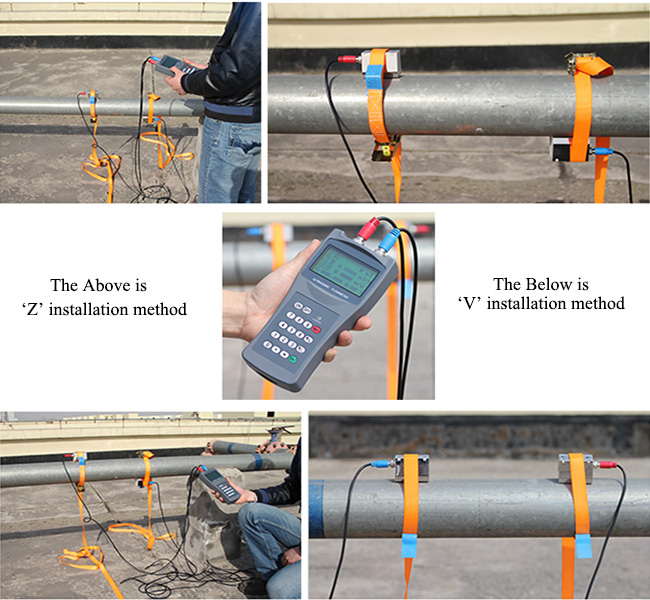

Below is installation sample of portable ultrasonic flow meter for your reference.
