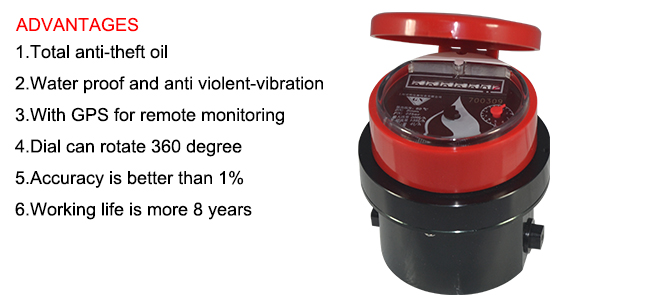

Illustrate
- Total anti-theft oil
- Water proof and anti-vibration
- 360 degree ratation for counter and easy reading ,easy installation.
- Working life can more 8 years.
- It's our national product in UAE

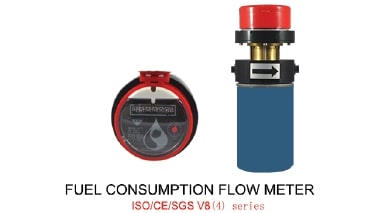

AK-FM Fuel Consumption Flow Meter(fuel counter).
- It’s the best fuel consumption flow meter (fuel counter) to manage fuel consumption. The accuracy is better than 1%.
- It’s our patent product and certificate is issued by State Intellectual Property Office.
- We are the leading manufacturer of Fuel consumption flow meter(fuel counter) in UAE.
- Monitor fuel consumption in modern way by connection with GPS
- The working temp is from -40C to 80C

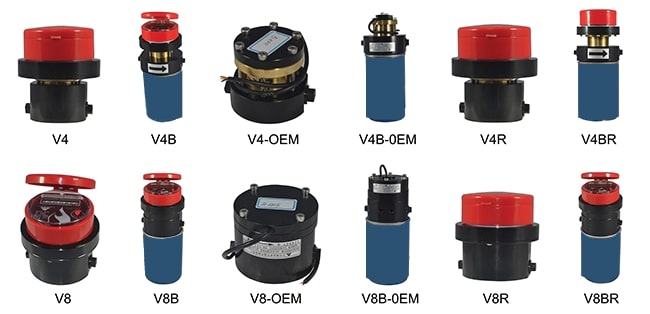

Below is mainly technical parameters for fuel Consumption Flow Meter(fuel counter).
|
Model |
Mechanical counter |
Filter |
Pulse |
Flow range |
Accuracy |
Thread |
Pressure |
|
V4 |
YES |
NO |
NO |
1-100L/H |
1% |
M14*1.5 |
32bar |
|
V4B |
YES |
YES |
NO |
1-100L/H |
1% |
M14*1.5 |
32bar |
|
V4B-OEM |
NO |
YES |
YES |
1-100L/H |
1% |
M14*1.5 |
32bar |
|
V4-OEM |
NO |
NO |
YES |
1-100L/H |
1% |
M14*1.5 |
32bar |
|
V4R |
YES |
NO |
YES |
1-100L/H |
1% |
M14*1.5 |
32bar |
|
V4BR |
YES |
YES |
YES |
1-100L/H |
1% |
M14*1.5 |
32bar |
|
V8 |
YES |
NO |
NO |
4-200L/H |
1% |
M14*1.5 |
32bar |
|
V8B |
YES |
YES |
NO |
4-200L/H |
1% |
M14*1.5 |
32bar |
|
V8B-OEM |
NO |
YES |
YES |
4-200L/H |
1% |
M14*1.5 |
32bar |
|
V8-OEM |
NO |
NO |
YES |
4-200L/H |
1% |
M14*1.5 |
32bar |
|
V8R |
YES |
NO |
YES |
4-200L/H |
1% |
M14*1.5 |
32bar |
|
V8BR |
YES |
YES |
YES |
4-200L/H |
1% |
M14*1.5 |
32bar |
|
V15H-800-OEM |
NO |
NO |
YES |
10-600L/H |
1% |
M14*1.5 |
32bar |
Pulse parameters.
|
Model |
pulse equivalent |
Min flow |
Frequency(HZ) |
Pulse with(S) |
Max flow |
Frequency(ZH) |
Pulse with(S) |
|
V4 OEM |
200P/L |
1L/H |
0.055000 |
18.00 |
80L/H |
4.444000 |
0.23 |
|
V4R-reed switch |
2P/L |
1L/H |
0.000550 |
1800.00 |
80L/H |
0.044440 |
22.50 |
|
V4R-hall |
1P/L |
1L/H |
0.000270 |
3600.00 |
80L/H |
0.022220 |
45.00 |
|
V4BR-reed switch |
2P/L |
1L/H |
0.000550 |
1800.00 |
80L/H |
0.044440 |
22.50 |
|
V4BR-hall |
1P/L |
1L/H |
0.000027 |
3600.00 |
80L/H |
0.022220 |
45.00 |
|
V8 OEM |
80P/L |
4L/H |
0.088800 |
11.25 |
200L/H |
4.444000 |
0.23 |
|
V8R-reed switch |
2P/L |
4L/H |
0.000550 |
1800.00 |
200L/H |
0.044440 |
22.50 |
|
V8R-hall |
1P/L |
4L/H |
0.000027 |
3600.00 |
200L/H |
0.022220 |
45.00 |
|
V8BR-reed switch |
2P/L |
4L/H |
0.000550 |
1800.00 |
200L/H |
0.044440 |
22.50 |
|
V8BR-hall |
1P/L |
4L/H |
0.000027 |
3600.00 |
200L/H |
0.022220 |
45.00 |

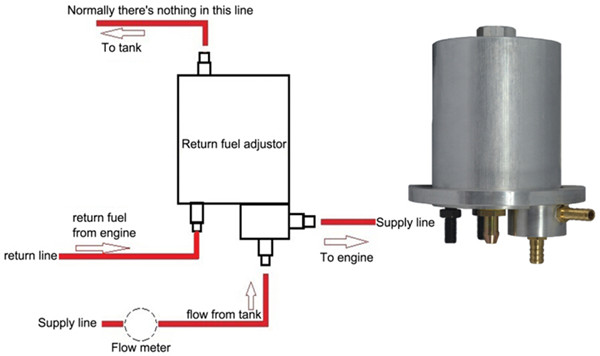

Fuel adjustor for directly measurement.
- Ensure direct measurement accuracte, easy and safe
- It has function same aire elimilator.
- Pulsation will disappear when fuel goes through the adjustor.
- The pressure in return line will be zero with the adjustor.
- It's invented by our engineer and special to match with our fuel consumption flow meter(fuel counter).
Mainly application for fuel consumption flow meter (fuel counter)
Usually, V4 series is suitable for engines less than 200KW and V8 series is suitable for engines from 200KW to 500KW.
They are widely used fro various engines such as vehicles, boats, generators, construction machine, burner, boiler, localmotive etc.
