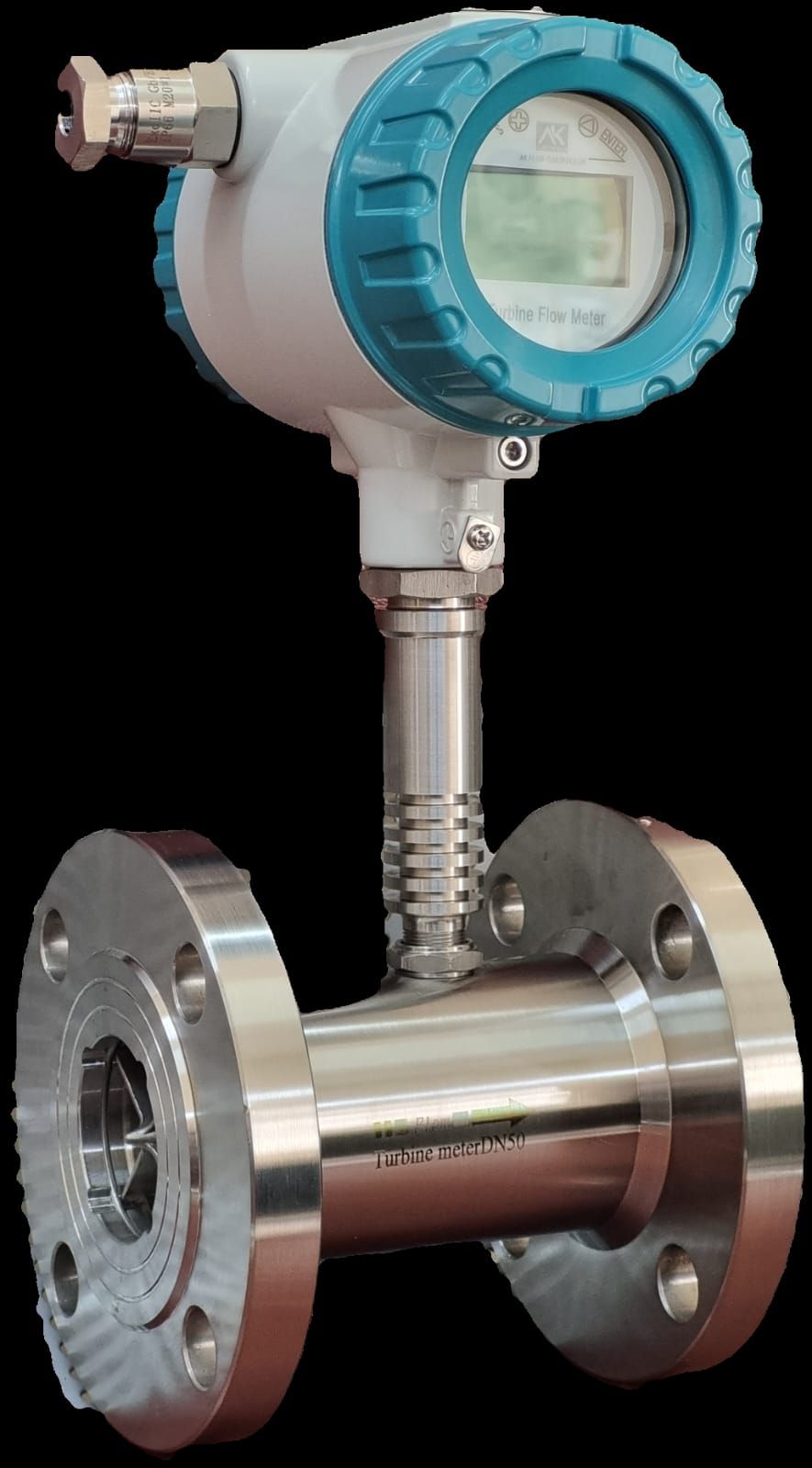

Illustrate
1) SS304/SS316 material for turbine flow meter 2) ISO,CE,SGS standard for exporting 3) 9 consecutive years as gold supplier for export 4) More 80% meters for export

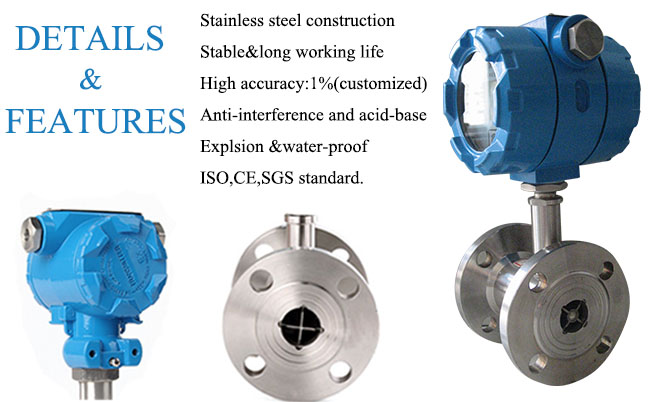

Brief Instruction
- It can measure the liquid rate and total flow rate of low viscosity
- Transmitting distance from sensor to display instrument up to 1000m.
- Pressure loss is small, the impeller is anti-corrosion
- High accuracy and good repeatability
- Vibration resistance and anti-electromagnetic interference
- long working life and reliable performance and no zero drift
Technical Parameters
| DN | 4~200mm |
| Flow rate | 0.04 ~800m3 / h |
| Medium temp. | -20 ~ +120 ℃ |
| Ambient temp. | -20 ~ +55 ℃ |
| Power supply | Voltage: +5-24 VDC, Current: ≤ 10mA |
| Output | 4 ~ 20mA two-wire |
| Display | Local LCD indicator |
| Explosion | No or yes (optional) |
| Accuracy | 1% |

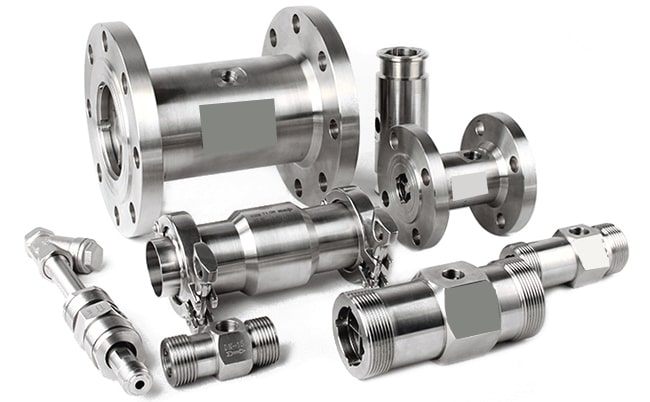

| Connection | Thread(DN4-DN40),flange(DN50-DN200) |
| Max pressure | 4.0Mpa(DN4-DN40),2.5Mpa(DN50-DN200) |
