AK Paddle Wheel Flow Meter

Illustrate

1. ISO,CE,SGS certificates for Paddle wheel flow meter.
2. 9 consecutive years as gold supplier for export.
3. More 30 year technology accumulation.
4. More 80% electromagnetic flow meters for export.
5. Benchmarking enterprises in Auto control&process instrument

Brief Introduction

1. ISO,CE,SGS certificates for Paddle wheel flow meter.
2. 9 consecutive years as gold supplier for export.
3. More 80% meters for export
4. More 30 year technology accumulation
5. Benchmarking enterprises in Auto control&process instrument
6. AK510 series addle wheel flow meter is a kind of speed flow meter. It is widely used in measuring airproof pipe and continuous liquid flow.
7. AK510 apply to test liquid with low viscosity liquid, high precision, total and rate flow.

Technical Parameters

1) PVDF Impeller
2) Accuracy:+/-1%
3) O-ring material: EPDM
4) Output: pulse output,4-20mA output, local total&rate flow display.
5) Power supply:24VDC or 220VAC,battery supply.

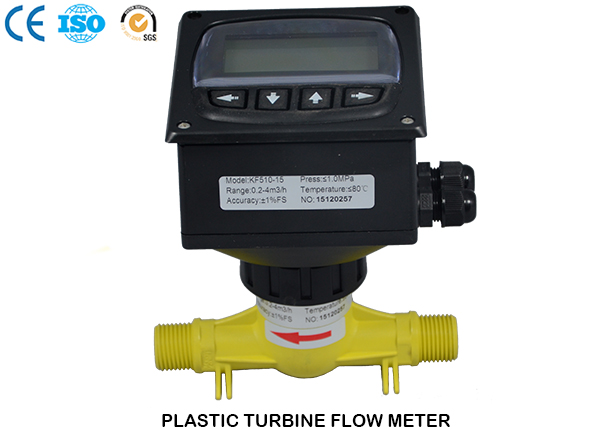

Main Feature for paddle wheel flow meter, it's called as plastic turbine flow meter

DN(mm)	Flow range	Male thread	Working	Medium temperature	A(mm)	B(mm)
	(L/min)		Pressure	℃
10	1～10	G3/8"	1	<=80℃	150	120
	2～20
	3～30	G3/8"
15	2～20	G1/2"			150	130
	5～50
	7～70	G1/2"
20	3～30	G3/4"			150	135
	6～60
	10～100	G3/4"
25	7～70	G1"	0.8		150	150
	10～100
	20～200	G1"
40	15～150	G1 1/2"			160	180
	25～250
	40～400	G1 1/2"
50	15～150	G2"			160	180
	50～500	G2"
	70～700	G2"

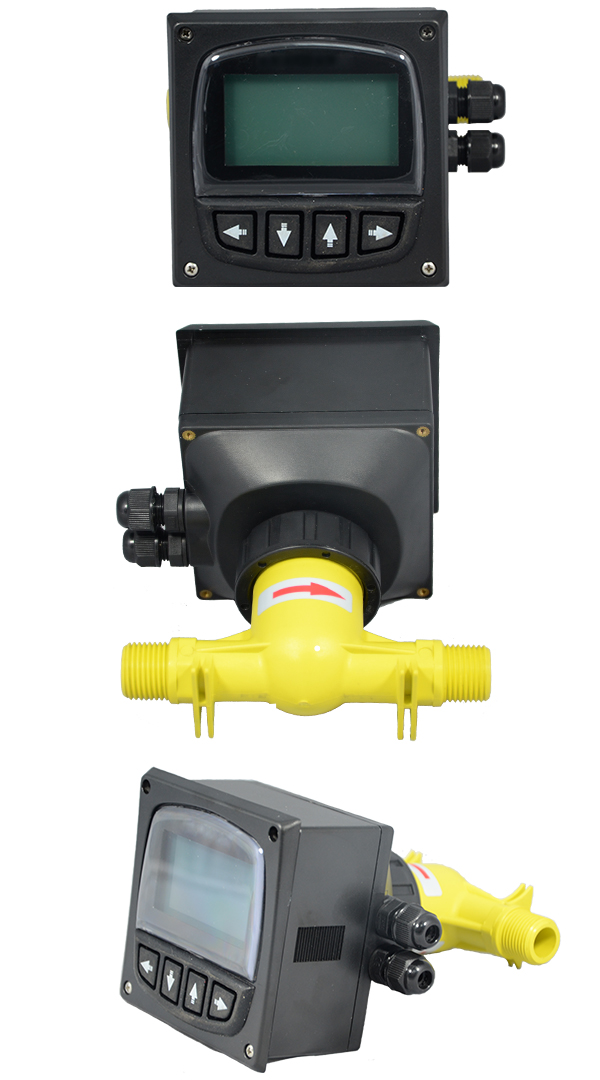

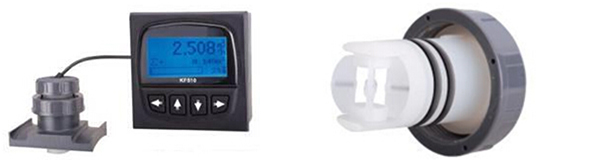

Panel Type Installation  /   Powered By Battery  for paddle wheel flow meter.
